Color changer CC Event

The differences between color changer Event and colour changer MagMax are some software options like real time drive and the missing of a cartridge. Because of less resolution exact, real time driven fades are not possible.
On the other hand a dark color mode is implemented as well as the frame position correction via the aluminium markers.
1, 2 or 3 DMX-channels are used (depends on operating mode).

Further information in the manual and product information.

Type Colors min. time scrolling Weight Dimensions (LxWxD) Diameter
front rear

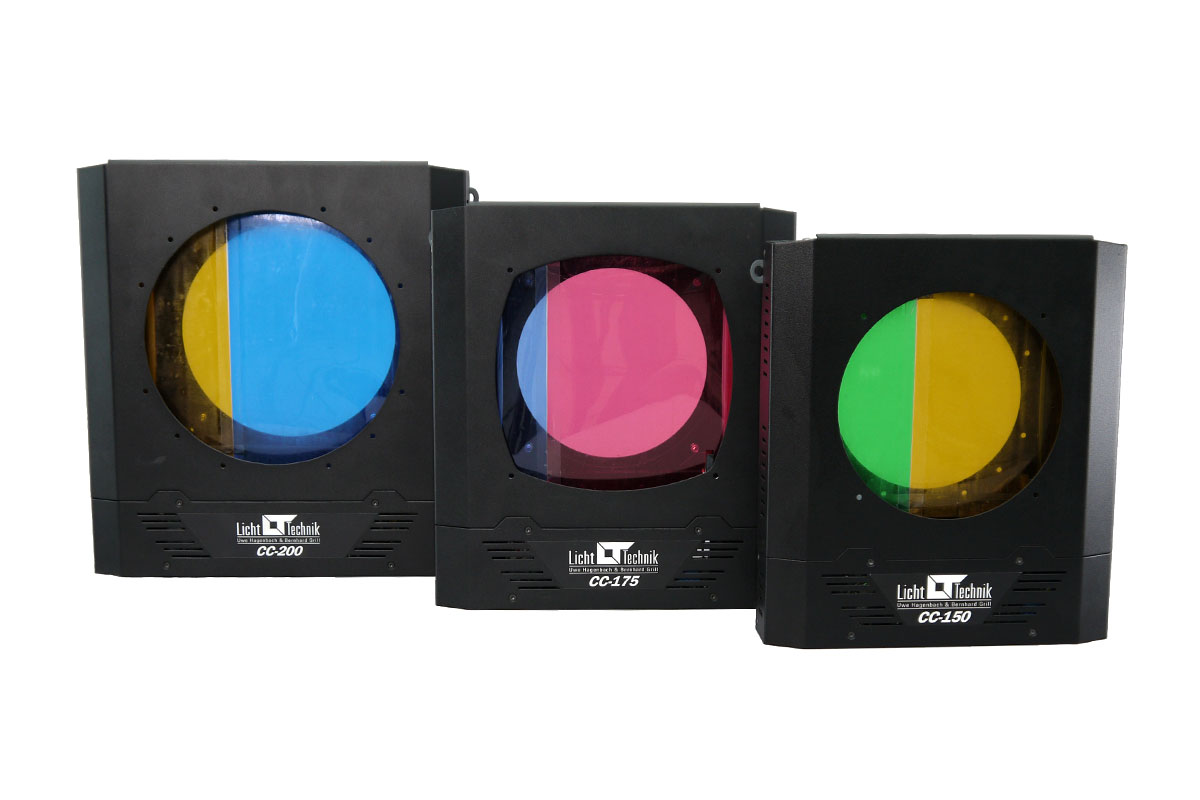

CC-150 1 – 30 <4s 2,1 kg 310 x 270 x 70 mm 170 mm 150 mm
CC-175 1 – 30 < 4s 2,3 kg 330 x 290 x 70 mm 190 mm 175 mm
CC-200 1 – 30 <5s 3,5 kg 365 x 390 x 75 mm 220 mm 200 mm
CC-270 1 – 25 <5s 4,7 kg 470 x 400 x 70 mm 260 mm 250 mm
CC-350 1 – 18 <5s 6,0 kg 530 x 540 x 80 mm 350 mm 350 mm
Download Version Date
Produkt Infos (DE/EN) 30.3.2005
Bedienungsanleitung (DE) 2.20 12.03.2015
User Manual (EN) 2.20 12.03.2015
Folienmaße (DE) 30.11.2011
