Color changer CC Event
The differences between color changer Event and color changer MagMax are some software options like real time drive and the missing of a cartridge. Because of less resolution exact, real time driven fades are not possible.
On the other hand a dark color mode is implemented as well as the frame position correction via the aluminium markers.
1, 2 or 3 DMX-channels are used (depends on operating mode).
Further information in the manual and product information.

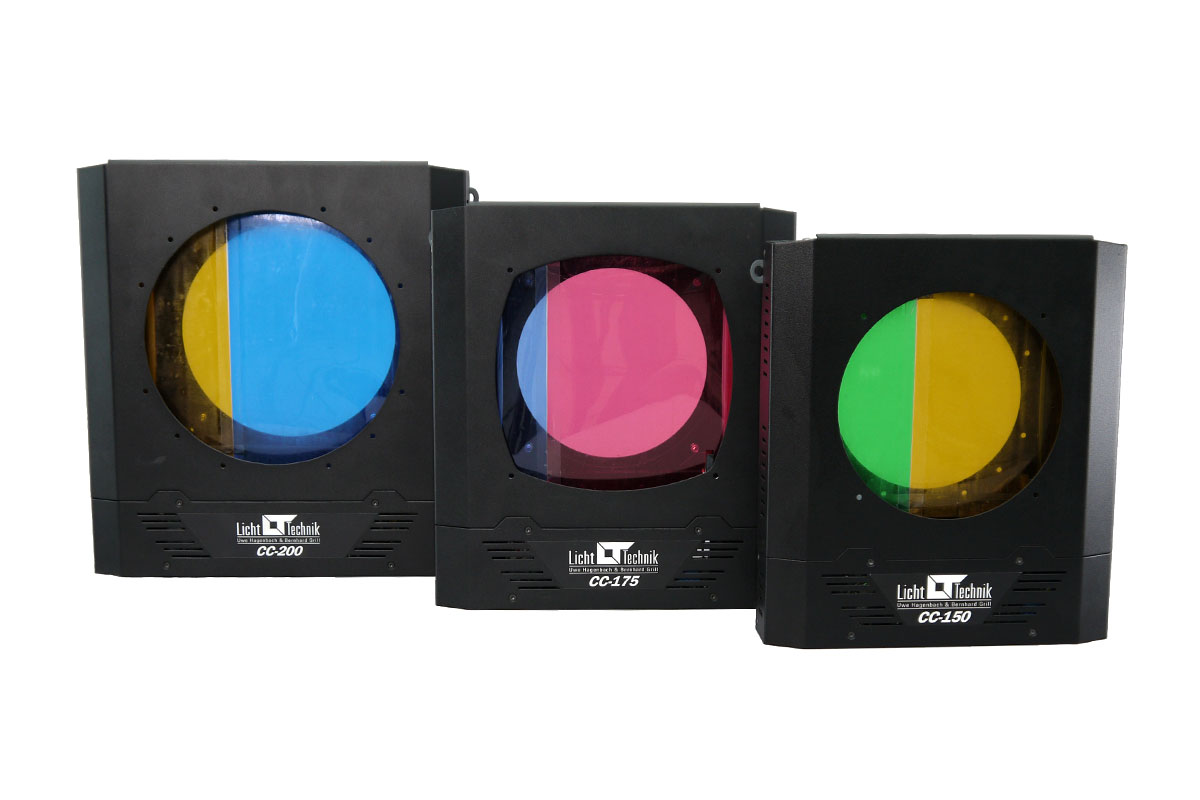

| Type | Colors | min. time scrolling | Weight | Dimensions (LxWxD) | Diameter | |
|---|---|---|---|---|---|---|
| front | rear | |||||
| CC-150 | 1 – 30 | <4s | 2,1 kg | 310 x 270 x 70 mm | 170 mm | 150 mm |
| CC-175 | 1 – 30 | < 4s | 2,3 kg | 330 x 290 x 70 mm | 190 mm | 175 mm |
| CC-200 | 1 – 30 | <5s | 3,5 kg | 365 x 390 x 75 mm | 220 mm | 200 mm |
| CC-270 | 1 – 25 | <5s | 4,7 kg | 470 x 400 x 70 mm | 260 mm | 250 mm |
| CC-350 | 1 – 18 | <5s | 6,0 kg | 530 x 540 x 80 mm | 350 mm | 350 mm |
| Download | Version | Date |
|---|---|---|
| Produkt Infos (DE/EN) | — | 30.3.2005 |
| Bedienungsanleitung (DE) | 2.21 | 10.10.2017 |
| User Manual (EN) | 2.21 | 10.10.2017 |
| Folienmaße (DE) | — | 30.11.2011 |
